Australians' love of the water has always provided challenges to the construction industry, particularly when it comes to choosing materials that can be used in aggressive environments such as near the coast or swimming pools.
Stainless steel grades 316 and 304 have long been the obvious solution in these applications, but the key factors of formability, cost and corrosion resistance are now shining the spotlight on an alternative grade.
445M2 stainless steel has been used in Australia for a number of years for roofing and walling applications, and its characteristics are now proving useful for a broader range of applications.
The material, supplied by ASSDA member Austral Wright Metals, is being used by Dunning Engineering Services Pty Ltd for a range of stainless steel pergola brackets.
Dunnings - a South Australian based manufacturer of builders and plumbers hardware, who also operate a sheet metal pressing and fabrication facility - developed the range in response to the growing demand for better corrosion-resistant products that can be used in aggressive environments.
The company experimented with punching and bending various grades of stainless steel, including 316, but it was 445M2's formability that provided the crisp, clean angles they were seeking, with the advantage of reduced tool wear.æ Dunnings was also able to fabricate with existing tooling and machinery, avoiding the prohibitive cost of new dies and tooling.
More importantly, 445M2 is a marine grade stainless steel with the corrosion resistance of 316 or better and a cost that falls between 304 and 316.
Dunning spokesperson John Gill said 445M2 resisted the salt from the surf, and gave safe performance over a long life - even when painted.
"Due to the formability of 445M2, the savings to our business have been enormous and we are now looking at other areas where 445M2 could be applied," he said.
This article featured in Australian Stainless magazine - Issue 37, Spring 2006.
(This article is the second in a series showcasing the uses of 445M2 stainless steel)
The use of stainless steel plant and equipment in the food industry continues to prove its worth as an increasing number of processors adopt its use in line with their dedication and obligation to food quality and safety.
Whilst stainless steel grades 316 and 304 offer an environment of easy maintenance and cleaning, 445M2 stainless steel goes one step further.
445M2 panels have been supplied to Bertocchi Smallgoods by ASSDA Major Sponsor Austral Wright Metals, following a four-month trial of all three grades of stainless steel.
Bertocchi, a Melbourne-based company producing hams, bacon, salamis and other specialised continental smallgoods, sought an alternative to their existing painted steel linings after they discovered the life of the linings was too short for their high cleaning standards.
The walls and ceiling of the factory are regularly cleaned in line with a guarantee of the highest quality health and safety standards, together with absolute traceability of every unit of product.
This is where stainless steel stepped in. The hardness and smoothness of stainless steel enables it to resist the adhesion of soils and bio-films, and the excellent corrosion resistance allows it to be easily cleaned and sanitised. Indeed, laboratory tests prove stainless steel is significantly more hygienic than other materials, even when used for food contact surfaces. Moreover, the taste and colour of food products are not affected by stainless steels.

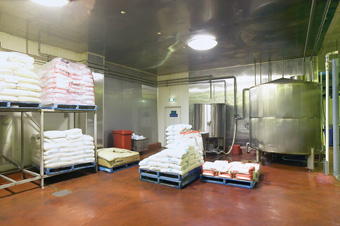

After four months of trialing panels of stainless steel grades 304, 316 and 445M2, Bertocchi Smallgoods chose the new generation ferritic grade 445M2 to line the factory- ceilings and walls. With superior corrosion resistance to grade 316, 445M2 resists the powerful cleaning agents used to keep the factory clean, as well as the hot, humid and salty atmosphere around the brine lines.
So far, Bertocchi has installed 10 tonnes of 445M2 0.7 x 1219 mm sheet with a 2B finish. The result? A clean, bright factory that's easy to keep that way. And Bertocchi intends to keep going until the entire factory is lined with 445M2.
This article featured in Australian Stainless Magazine - edition 38 Summer 2006
(This article is the third in a series showcasing the uses of 445M2 stainless steel)
The Applied Science Building at the University of NSW is a landmark in the Eastern Suburbs of Sydney. This world-class multi-storey complex of research laboratories and lecture theatres has recently been extended and upgraded, including the air conditioning and fume extraction systems.
The new air conditioning and ventilation systems were placed on the roof. Management at the University were concerned that the upgrade would be a major disruption and not one they wished to endure more than once in a generation. They needed materials to be long- lasting and require minimal maintenance.
As contractors on the project, Croydon Industries chose a new generation marine grade stainless steel. 445M2 was selected for the ducts on the roof, which are exposed to a marine atmosphere created by surf at Maroubra Beach just a few kilometres away. Brian Clark at Croydon Industries says, “This was the first time we used 445M2, and we were a bit apprehensive - but it gave us no problems. It formed very easily, producing clean lines and well shaped panels with no flaws. “The stream diffuser sheet of perforated metal was a dream to make. “The punching ran cool, the sheet came out flat, with very little burr and at a lower cost than the familiar 316. We're glad we opted to use 445M2, it's been a win-win for all.”
This article featured in Australian Stainless Magazine - edition 39 Autumn 2007
